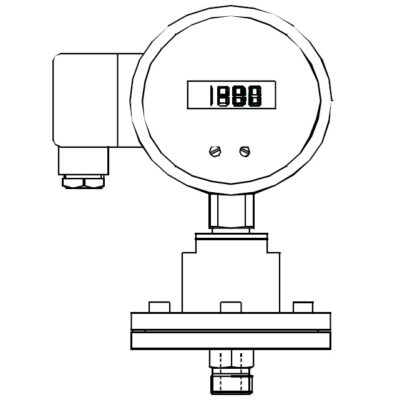

PES Diaphragm seal digital pressure gauge with all-stainless chemical seal
| Case | bayonet lock, AISI304/1.4301, IP65 |
| Wetted parts | AISI316/1.4571 |
| Window | mineral glass 4 mm |
| Display | 3½ – digit LCD, 12 mm high |
| Electric protection | against reverse voltage |
| Emission | EN55022, class B |
| Connection cable | screened twisted pair |
| Immunity | IEC-801-2/3/4 |
| Accuracy | gauge : <0.5% F.S. |
| Range | from -1/0.6 and 0-1.6 – 60 bar; higher pressure ranges (max. 600 bar) |
| Power supply | + 13..35Vdc |
| Tprocess | -20/+120 °C (-40°C upto +250°C on demand) |
| Process temperature | -20..+120 °C |
| Ambient temperature | 0..+ 55°C |
| Temperature drift | ± 0,02%/°C over Tambient |
| Options | transmitter 4-20 mA |
DOWNLOADS: Data sheet PES Diaphragm seal digital pressure gauge with all-stainless chemical seal.pdf
PES digital pressure guage with diaphragm and all-stailness chemical seal
At EMVO Techniek, we offer a range of high-quality PES digital diaphragm gauges with a chemical seal entirely made of stainless steel. These gauges are equipped with a power cable for continuous electricity supply, making them resilient against corrosive substances and chemicals found in their operating environment. As such, they are well-suited for various industrial applications where chemical exposure is common, including the petrochemical industry, pharmaceutical sector, laboratories, and more.
