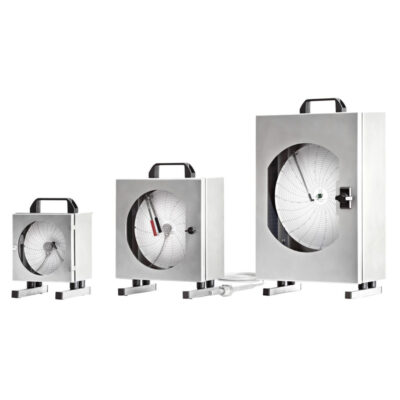

RPX Stainless steel Pressure Recorders
Enig resultaat
| Case | AISI316L |
| Wetted parts | bourdon tube, AISI316 |
| Window | plexiglass |
| Pen operation | single or double-pen, writing with long-life fiber pens on disc |
| Clockwork | mechanical spring wound, 24-hour or 7 day rotation |
| Charts dimensions | Ø163 mm for 192x192mm, Ø223 mm for 280×280 mm, Ø300 mm for 380×380 mm |
| Range | -1/+0,6 upto 0-60 bar, according to DIN |
| Movement | brass, nickel plated |
| Accuracy | ±1,0% F.S./class 1,0 |
| Tprocess | maximaal 80 °C |
DOWNLOADS: Data sheet RPX Stainless steel Pressure Recorders.pdf
Pressure recorders wit RPX Bourdon tube system
Looking for a pressure recorder with an RPX bourdon tube system? This pressure recorder features a mechanical spring mechanism to drive the clock, eliminating the need for external power to record pressure data over a specific period. The clock can be set to either a 24-hour or 7-day rotation. With its stainless steel housing, this pressure recorder is resistant to corrosion, making it suitable for use in various industrial environments. Thanks to the Bourdon tube system, the RPX stainless steel pressure recorder operates with exceptional accuracy.
