PBX-CAISSON stainless steel with bourdon tube of copper-beryllium
Enig resultaat
| Case | Ø160 mm bayonet lock, AISI304/1.4301, IP-45, blow-out |
| Bourdon tube | Copper/Beryllium |
| Window | mineral glass 4 mm |
| Dial | aluminium, black figures on white background |
| Pointer | aluminium, black |
| Connection to outside chamber | ½”BSP or ½”NPT, AISI316Ti/1.4571 |
| Range | from 0 – 10 upto 0-100 mSW, according to EN 837-1 or from 0-1 bar upto 10 bar |
| Accuracy | 0,25% F.S./class 0,25 |
| Movement | brass with stownbearing |
| Calibration report | included, minimal 10 points |
| Application | for use inside decompression chambers with vent connection for ambient pressure |
DOWNLOADS: Data sheet PBX-CAISSON stainless steel with bourdon tube of copper-beryllium.pdf

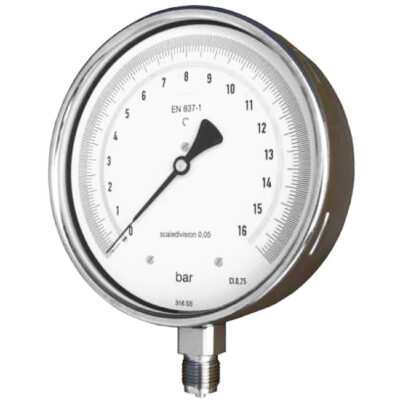

Stainless steel PBX-CAISSON pressure gauge with copper-beryllium bourdon tube
At EMVO Techniek, you can easily order the PBX-CAISSON stainless steel pressure gauge with a copper-beryllium bourdon tube. Specifically engineered for use in decompression chambers, this pressure gauge ensures accurate measurements of both internal and ambient pressures, crucial for diver safety during the decompression process. With its robust stainless steel construction, it offers durability and high resistance to corrosion. The copper-beryllium bourdon tube, known for its strength and resilience, guarantees precise and reliable pressure readings, even under the varying pressure conditions typical of decompression chambers.
