PBX-SS-CD, with compensation diaphragm - max. 2500 m
Enig resultaat
| Case | ø100 mm – bayonet lock, AISI316/1.4401, 100% Glycerine filled |
| Wetted parts | bourdon tube + connection AISI316Ti/1.4571 |
| Window | armoured glass 4 mm |
| Dial | aluminium, black figures on white background |
| Pointer | aluminium, black |
| Connection | 1/2″ BSP or 1/2″ NPT |
| Range | 0-1 upto 0-60 bar, according to EN 837-1 |
| Movement | AISI304/1.4301 |
| Accuracy | ± 1,0% F.S./class 1 |
| Application | for operating at great depths of sea water |
DOWNLOADS: Data sheet PBX-SS-CD, with compensation diaphragm – max. 2500 m.pdf

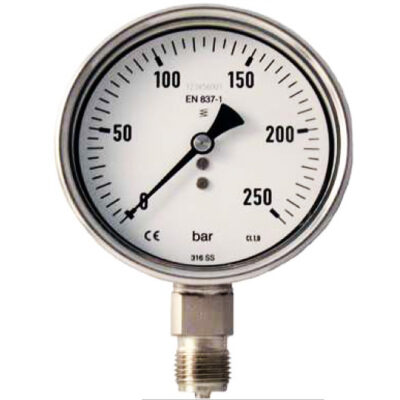

PBX-SS-CD pressure gauge with compensation diaphragm, max. 2500 meters
At EMVO Techniek, you can also find the PBX-SS-CD manometer equipped with a compensating diaphragm. This stainless steel manometer, designed for deep-sea applications, is capable of measurements at depths of up to 2500m below sea level. The compensating diaphragm effectively mitigates the impact of temperature variations on pressure measurement accuracy. Temperature fluctuations can lead to expansion or contraction of the filling medium, affecting the pressure readings. You can easily order this high-quality, highly accurate manometer from EMVO Techniek.
