PBX-SS, with pressure tight solid barstock case
Enig resultaat
| Case | screwed bezel, AISI316/1.4401, pressure tight for depths down |
| Wetted parts | bourdon tube + connection AISI316Ti/1.4571 |
| Window | armoured glass 19mm thick (Ø63 15mm) |
| Dial | aluminium, black figures on white background |
| Pointer | aluminium, black |
| Connection | Ø63mm: ¼”BSP or ¼”NPT; Ø100 and Ø160mm: 1/2 ” BSP or 1/2 ” NPT |
| Range | 0-6 upto 0-60 bar, according to EN 837-1; for higher ranges (max. 1600 bar) |
| Movement | AISI304/1.4301 |
| Accuracy | case Ø 63 : ± 1.6% F.S./class 1.6; case Ø100 and Ø160 : ± 1.0% F.S ./class 1 |
| Application | for operating at great depths of sea water and in hyperbaric conditions |
DOWNLOADS: Data sheet PBX-SS, with pressure tight solid barstock case.pdf

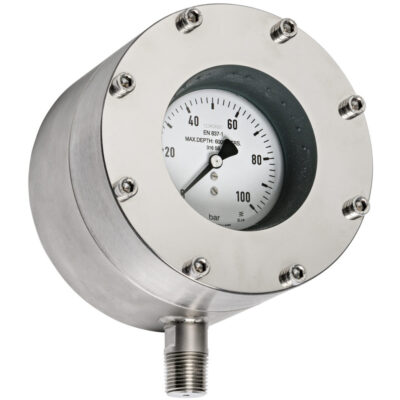

PBX-SS manometer with pressure-tight casing
EMVO Techniek offers a wide range of PBX-SS manometers with a pressure-tight, solid barstock housing. These pressure gauges are powerful enough to perform optimally even under high-pressure conditions underwater. This particularly applies to conditions at great depths below sea level, as well as other hyperbaric environments. Due to the sturdy cylindrical metal shape of the housing, this manometer is highly durable and robust.
Contact
Want to request a quote? We’ll provide you with a tailored quote within 24 hours. It’s non-binding and comes at no cost. Once you’re satisfied, we’ll swiftly arrange delivery of your ordered pressure gauge. Require a customized variant? Printing included? Any additional specifications for your new measuring instrument are easily accommodated by us. As specialists in manometers, we’re here to help. Don’t hesitate to reach out. Our experts are ready to address all your inquiries. You can contact us at the following number: +31(0)413-473037.
